Silicone Hose Reducer
We offer professional grade reinforced Silicone Hose Reducer for 45° to 135° degrees and Straight Silicone Reducer
Our silicone hose reducer is made from the best quality silicone. It serves in heating and cooling systems; charge-air-cooler (hot & cold side); Turbo charger systems & custom compressor, intercooler or intake & inlet piping for turbo/Superchargers, etc.

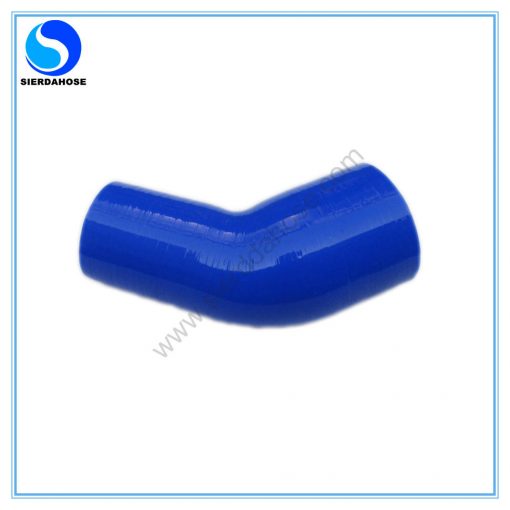

45 Degree Silicone Hose Reducer
- Inner: 100% high quality silicone
- Cover: silicone
- Reinforcement: 4 ply of polyester/aramid/glass fiber
- Color: Black/Red/Blue/Green/Yellow

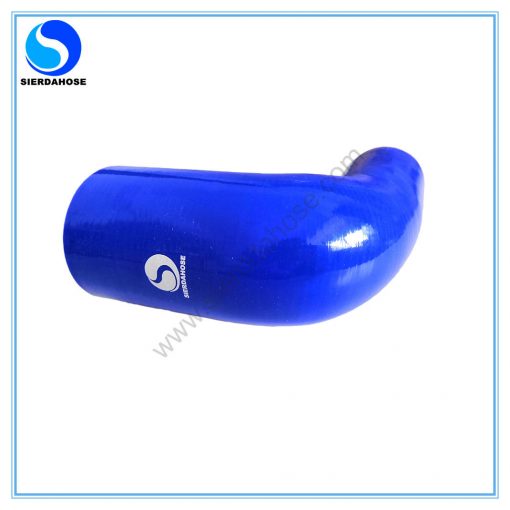

90 Degree Silicone Hose Reducer
- Inner: 100% high quality silicone
- Cover: silicone
- Reinforcement: 4 ply of polyester/aramid/glass fiber
- Color: Black/Red/Blue/Green/Yellow
135 Degree Silicone Hose Reducer
- Inner: 100% high quality silicone
- Cover: silicone
- Reinforcement: 4 ply of polyester/aramid/glass fiber
- Color: Black/Red/Blue/Green/Yellow

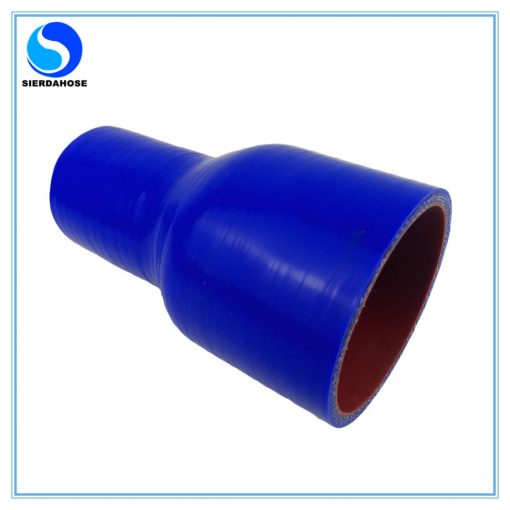

Straight Silicone Hose Reducer
- Inner: 100% high quality silicone
- Cover: silicone
- Reinforcement: 4 ply of polyester/aramid/glass fiber
- Color: Black/Red/Blue/Green/Yellow
We provide custom silicone hose reducer service. Each hose is customized according to customer requirements designed. Not only provide high-quality products, but we emphasize on-time production and shipment.
45/90/135 Degree Silicone Elbow Reducer Specifications And Dimensions:
| INCH SIZE | ID | LAYER | THICKNESS | LEG LENGTH | INCH SIZE | ID | LAYER | THICKNESS | LEG LENGTH |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | ||||
| 3/4″-5/8″ | 19-16 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3″-2 1/4″ | 76-57 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1″-5/8″ | 25-16 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3″-2 1/3″ | 76-60 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1″-3/4″ | 25-19 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3″-2 1/2″ | 76-63 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1 1/4-1″ | 32-25 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3″-2 3/4″ | 76-70 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1 3/8″-1″ | 35-25 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/7″-2 1/3″ | 80-60 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1 3/8″-1 1/4″ | 35-32 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/7″-2 1/2″ | 80-63 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1 1/2″-1″ | 38-25 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/7″-2 3/4″ | 80-70 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1 1/2-1 1/4″ | 38-32 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/7″-3″ | 80-76 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1 1/2-1 3/8″ | 38-35 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/2″-2 1/3″ | 89-60 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1 7/9″-1 1/2″ | 45-38 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/2″-2 1/2″ | 89-63 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2″-1 1/2″ | 51-38 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/2″-2 3/4″ | 89-70 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2″ – 1 3/5″ | 51-41 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/2″-3″ | 89-76 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2″-1 7/9″ | 51-45 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/2″-3 1/7″ | 89-80 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 1/4″-2″ | 57-51 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/2″-2 3/4″ | 90-70 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 1/3″-1 7/9″ | 60-45 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/2″-3″ | 90-76 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 1/3″-2″ | 60-51 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 3 1/2″-3 1/7″ | 90-80 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 1/2″-1 7/9 | 63-45 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 4″-3″ | 100-76 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 1/2″-2″ | 63-51 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 4″-3 1/2″ | 100-89 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 1/2″-2 1/4″ | 63-57 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 4″-2 1/2″ | 102-63 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 3/4″-2″ | 70-51 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 4″-3″ | 102-76 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 3/4″-2 1/4″ | 70-57 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 4″-3 1/2″ | 102-89 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 3/4″-2 1/3″ | 70-60 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 4 1/2″-3 1/2″ | 114-89 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 2 3/4″-2 1/2″ | 70-63 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 4 1/2″-4″ | 114-102 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 3″-2″ | 76-51 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 5″-4″ | 127-102 | 4 | 4-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
